DL-3-EL / Square / Long / 3 Flutes

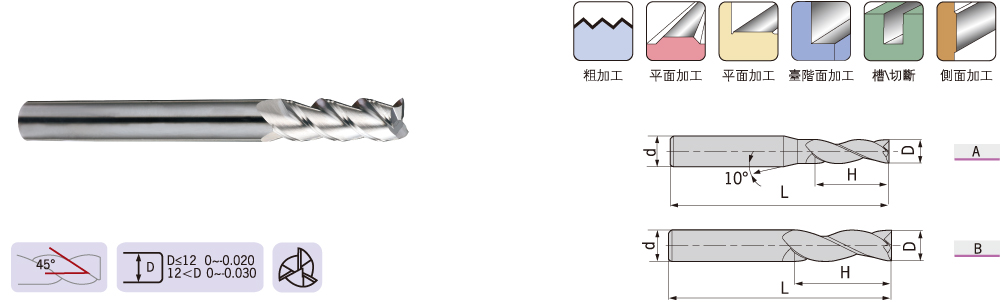

DL-3-EL三刃直柄长刃平头立铣刀 |
 |
| 型号 |
刃数 |
图示 |
|
|
|
|
|
|
Specifcation |
Flute |
Figure |
D |
R |
d |
H |
L |
|
DL- |
D3.0-60-3T-EL |
3 |
A |
3.0 |
1.0 |
6 |
12 |
60 |
| D4.0-60-3T-EL |
3 |
A |
4.0 |
1.5 |
6 |
16 |
60 |
| D5.0-60-3T-EL |
3 |
A |
5.0 |
2.0 |
6 |
20 |
60 |
| D6.0-75-3T-EL |
3 |
B |
6.0 |
2.5 |
6 |
25 |
75 |
| D8.0-75-3T-EL |
3 |
B |
8.0 |
3.0 |
8 |
32 |
75 |
| D10.0-100-3T-EL |
3 |
B |
10.0 |
4.0 |
10 |
45 |
100 |
| D12.0-100-3T-EL |
3 |
B |
12.0 |
5.0 |
12 |
45 |
100 |
| D16.0-150-3T-EL |
3 |
B |
16.0 |
6.0 |
16 |
65 |
150 |
| D20.0-150-3T-EL |
3 |
B |
20.0 |
5.0 |
20 |
75 |
150 |
| |
| 特点/ Feature |
| ■适用于铝合金的彷形铣削。 ■Copying for Aluminium Alloy. |
|
| ■被加工材料使用表 ◎ 非常适合 ○ 适合 ■Work Piece Table ◎ Excellent ○ Good |
| 被加工材料 Work Piece |
|
碳素钢
Carbon
steel |
合金钢
Alloy steel |
|
预硬钢、淬硬钢
Pre-hardened steel、Hardened steel |
| ~40HRC ~50HRC ~55HRC ~68HRC | |
不锈钢
Stainless
steel |
铸铁、球墨铸铁
Cast iron,
Nodular
cast iron |
铜合金
Copper
alloy |
铝合金
Aluminium
alloy |
钛合金
Titanium
alloy |
耐热合金
Heat
resistant
alloy |
| |
|
|
|
|
|
|
|
|
◎ |
|
|
|
|
