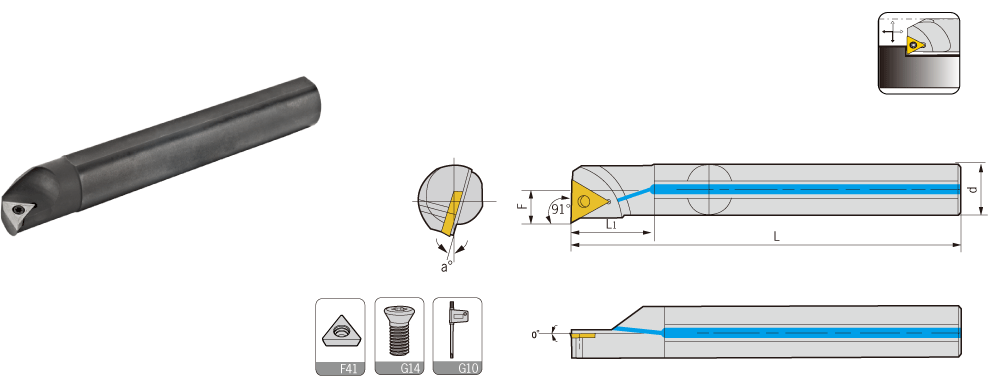

型 号 |
最小加工径 |
|
|
|
|
|
|
刀片 |
螺丝 |
扳手 |
出水孔 |
|
Specification |
Min dia |
d |
F |
L1 |
L |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S08K-STFCR/L09 |
11 |
8 |
5.5 |
15 |
125 |
7 |
15° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
S10K-STFCR/L09 |
13 |
10 |
6 |
17 |
125 |
9 |
13° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
S12M-STFCR/L09 |
16 |
12 |
7 |
20 |
150
|
11 |
10° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
S10K-STFCR/L11 |
12 |
10 |
6 |
17 |
125 |
9 |
12° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
S12M-STFCR/L11 |
14 |
12 |
7 |
20 |
150
|
11 |
10° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
S16N-STFCR/L11 |
20 |
16 |
9 |
27 |
160 |
15 |
8° |
TC..1102.. |
M2.5*7 |
Q08 |
- |
|
S20Q-STFCR/L11 |
25 |
20 |
11 |
34 |
180
|
18 |
6° |
TC..1102.. |
M2.5*7 |
Q08 |
- |
|
S20Q-STFCR/L16 |
25 |
20 |
11.5 |
34 |
180 |
18 |
8° |
TC..16T3.. |
M3.5*9 |
Q15 |
- |
|
S25R-STFCR/L16 |
31 |
25 |
14 |
43 |
200
|
23 |
6° |
TC..16T3.. |
M3.5*9 |
Q15 |
- |
|
S32S-STFCR/L16 |
39 |
32 |
17.5 |
54 |
250 |
30 |
4° |
TC..16T3.. |
M3.5*9 |
Q15 |
- |
|
S40T-STFCR/L16 |
50 |
40 |
21.5 |
68 |
300
|
37 |
2° |
TC..16T3.. |
M3.5*9 |
Q15 |
- |
|
H08K-STFCR/L09 |
11 |
8 |
5.5 |
15 |
125 |
7 |
15° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
H10K-STFCR/L09 |
13 |
10 |
6 |
17 |
125
|
9 |
13° |
TC..0902.. |
M2.2*5 |
Q06 |
- |
|
H10K-STFCR/L11 |
13 |
10 |
6 |
17 |
125 |
9 |
12° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
H12M-STFCR/L11 |
14 |
12 |
7 |
20 |
150
|
11 |
10° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
H16N-STFCR/L11 |
20 |
16 |
9 |
27 |
160 |
15 |
8° |
TC..1102.. |
M2.5*7 |
Q08 |
- |
|
C08K-STFCR/L09 |
11 |
8 |
5.5 |
15 |
125
|
7 |
15° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
C10M-STFCR/L09 |
13 |
10 |
6 |
17 |
150 |
9 |
13° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
C12Q-STFCR/L09 |
16 |
12 |
7 |
20 |
180
|
11 |
10° |
TC..0902.. |
M2.2*6 |
Q06 |
- |
|
C10M-STFCR/L11 |
13 |
10 |
6 |
17 |
150 |
9 |
12° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
C12Q-STFCR/L11 |
14 |
12 |
7 |
20 |
180
|
11 |
10° |
TC..1102.. |
M2.5*6 |
Q08 |
- |
|
C16R-STFCR/L11 |
20 |
16 |
9 |
27 |
200 |
15 |
8° |
TC..1102.. |
M2.5*7 |
Q08 |
- |
|
C20S-STFCR/L11 |
25 |
20 |
11 |
34 |
250
|
19 |
8° |
TC..1102.. |
M2.5*7 |
Q08 |
- |
|
A08K-STFCR/L09 |
11 |
8 |
5.5 |
15 |
125 |
7 |
15° |
TC..0902.. |
M2.2*6 |
Q06 |
√ |
|
A10K-STFCR/L09 |
13 |
10 |
6 |
17 |
125
|
9 |
13° |
TC..0902.. |
M2.2*6 |
Q06 |
√ |
|
A12M-STFCR/L11 |
14 |
12 |
7 |
20 |
150 |
11 |
10° |
TC..1102.. |
M2.5*6 |
Q08 |
√ |
|
A16N-STFCR/L11 |
20 |
16 |
9 |
27 |
160
|
15 |
8° |
TC..1102.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-STFCR/L16 |
25 |
20 |
11.5 |
34 |
180 |
18 |
8° |
TC..16T3.. |
M3.5*9 |
Q15 |
√ |
|
A25R-STFCR/L16 |
31 |
25 |
14 |
43 |
200
|
23 |
6° |
TC..16T3.. |
M3.5*9 |
Q15 |
√ |
| 适用 Suitable:德克刀片 DEREK Insert |
|
|
