型 号 |
最小加工径 |
|
|
|
|
|
|
刀片 |
螺丝 |
扳手 |
出水孔 |
|

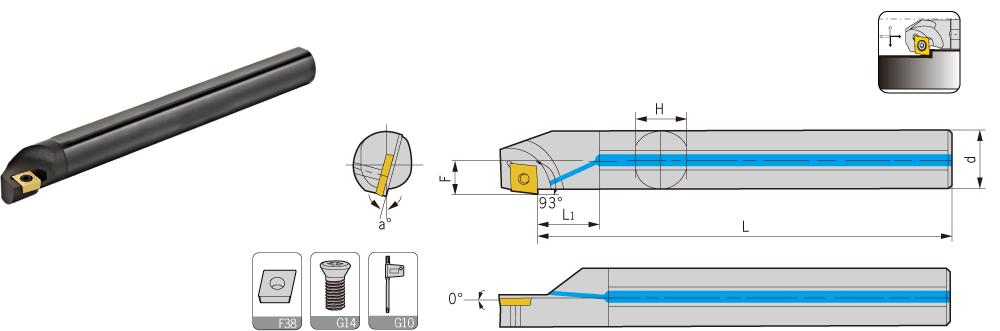

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S08K-SCZCR/L06 |
12 |
8 |
6.5 |
125 |
14 |
7 |
13° |
CC..0602.. |
M2.5*5 |
Q08 |
- |
|
S10K-SCZCR/L06 |
14 |
10 |
7.5 |
125 |
17 |
9 |
12° |
CC..0602.. |
M2.5*6 |
Q08 |
- |
|
S12M-SCZCR/L06 |
16 |
12 |
8.5 |
150 |
20
|
11 |
10° |
CC..0602.. |
M2.5*6 |
Q08 |
- |
|
S16N-SCZCR/L06 |
20 |
16 |
10.5 |
160 |
27 |
15 |
8° |
CP..0602.. |
M2.5*7 |
Q08 |
- |
|
S16N-SCZCR/L09 |
21 |
16 |
11.5 |
160 |
27
|
15 |
10° |
CC..09T3.. |
M3.5*8 |
Q15 |
- |
|
S20Q-SCZCR/L09 |
25 |
20 |
13.5 |
180 |
34 |
18 |
8° |
CC..09T3.. |
M3.5*9 |
Q15 |
- |
|
S25R-SCZCR/L09 |
32 |
25 |
16 |
200 |
43
|
23 |
6° |
CC..09T3.. |
M3.5*9 |
Q15 |
- |
|
H08K-SCZCR/L06 |
12 |
8 |
6.5 |
125 |
16 |
7 |
13° |
CC..0602.. |
M3.5*8 |
Q08 |
- |
|
H10K-SCZCR/L06 |
14 |
10 |
7.5 |
125 |
20
|
9 |
12° |
CP..0602.. |
M2.5*6 |
Q08 |
- |
|
H12M-SCZCR/L06 |
16 |
12 |
8.5 |
150 |
24 |
11 |
10° |
CC..0602.. |
M3.5*8 |
Q08 |
- |
|
H16N-SCZCR/L06 |
20 |
16 |
10.5 |
160 |
32
|
15 |
8° |
CP..0602.. |
M2.5*6 |
Q08 |
- |
|
H16N-SCZCR/L09 |
21 |
16 |
11.5 |
160 |
32 |
15 |
10° |
CC..09T3.. |
M3.5*8 |
Q15 |
- |
|
A08K-SCZCR/L06 |
12 |
8 |
6.5 |
125 |
14
|
7 |
13° |
CP..0602.. |
M2.5*6 |
Q08 |
√ |
|
A10K-SCZCR/L06 |
14 |
10 |
7.5 |
125 |
17 |
9 |
12° |
CC..0602.. |
M3.5*8 |
Q08 |
√ |
|
A12M-SCZCR/L06 |
16 |
12 |
8.5 |
150 |
20
|
11 |
10° |
CP..0602.. |
M2.5*6 |
Q08 |
√ |
|
A16N-SCZCR/L09 |
21 |
16 |
11.5 |
160 |
27 |
15 |
10° |
CC..09T3.. |
M3.5*8 |
Q15 |
√ |
|
A20Q-SCZCR/L09 |
25 |
20 |
13.5 |
180 |
34
|
18 |
8° |
CC..09T3.. |
M2.5*6 |
Q15 |
√ |
|
A25R-SCZCR/L09 |
32 |
25 |
16 |
200 |
43 |
23 |
6° |
CC..09T3.. |
M3.5*8 |
Q15 |
√ |
| 适用 Suitable:德克刀片 DEREK Insert |
|
|
