ASJ Cutter For Drilling And Milling
ASJ钻铣共用型铣刀 |
 |
| 型号 |
横刃 |
竖刃 |

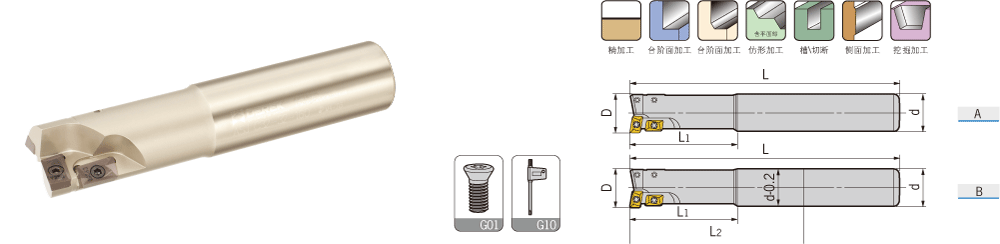

图示 |
|
|
|
|
|
横刀片 |
竖刀片 |
刀片螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
Cross |
Vertical |
Figure |
D |
d |
L1 |
L2 |
L
|
Cross insert
|
Vertical insert |
Insert screw |
Wrench |
Weight |
| ASJ- |
C20-20-160-4T |
1 |
3 |
A |
20 |
20 |
35 |
- |
160 |
ADMT100308L |
ACMT100308R |
M025W060 |
Q08B |
0.35 |
| C20-20-200-4T |
1 |
3 |
B |
20 |
20 |
35 |
100 |
200 |
ADMT100308L |
ACMT100308R |
M025W060 |
Q08B |
0.45 |
| C25-25-160-4T |
1 |
3 |
A |
25 |
25 |
40 |
- |
160 |
ADMT12T308L |
APMT12T308R |
M030Y070-2 |
Q10R |
0.55 |
| C25-25-200-4T |
1 |
3 |
B |
25 |
25 |
40 |
100 |
200 |
ADMT12T308L |
APMT12T308R |
M030Y070-2 |
Q10R |
0.75 |
| C25-25-250-4T |
1 |
3 |
B |
25 |
25 |
40 |
115 |
250 |
ADMT12T308L |
APMT12T308R |
M030Y070-2 |
Q10R |
0.95 |
| C25-25-300-4T |
1 |
3 |
B |
25 |
25 |
40 |
165 |
300 |
ADMT12T308L |
APMT12T308R |
M030Y070-2 |
Q10R |
1.15 |
| C32-32-160-4T |
1 |
3 |
A |
32 |
32 |
50 |
- |
160 |
APMT160408L |
APMT150408R |
M040S080-1 |
Q15B |
0.90 |
| C32-32-200-4T |
1 |
3 |
B |
32 |
32 |
50 |
100 |
200 |
APMT160408L |
APMT150408R |
M040S080-1 |
Q15B |
1.25 |
| C32-32-250-4T |
1 |
3 |
B |
32 |
32 |
50 |
115 |
250 |
APMT160408L |
APMT150408R |
M040S080-1 |
Q15B |
1.55 |
| C32-32-300-4T |
1 |
3 |
B |
32 |
32 |
50 |
165 |
300 |
APMT160408L |
APMT150408R |
M040S080-1 |
Q15B |
1.85 |
| C32-32-350-4T |
1 |
3 |
B |
32 |
32 |
50 |
165 |
350 |
APMT160408L |
APMT150408R |
M040S080-1 |
Q15B |
2.20 |
| C32-35-160-4T |
1 |
3 |
A |
35 |
32 |
50 |
- |
160 |
APMT170408L |
APMT150408R |
M040S080-1 |
Q15B |
1.00 |
| C32-35-200-4T |
1 |
3 |
A |
35 |
32 |
50 |
- |
200 |
APMT170408L |
APMT150408R |
M040S080-1 |
Q15B |
1.25 |
| C32-35-250-4T |
1 |
3 |
A |
35 |
32 |
50 |
- |
250 |
APMT170408L |
APMT150408R |
M040S080-1 |
Q15B |
1.60 |
| C32-35-300-4T |
1 |
3 |
A |
35 |
32 |
50 |
- |
300 |
APMT170408L |
APMT150408R |
M040S080-1 |
Q15B |
1.90 |
适用Suitable:德克、日立刀片DEREK Or HITACHI Insert
|
|
|
