ASL Cutter for Drilling And Milling
ASL钻铣共用型铣刀(短刃型) |
 |
| 型号 |
刃数 |
图示 |
|
|
|
|
|
横刀片 |
竖刀片 |
刀片螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |

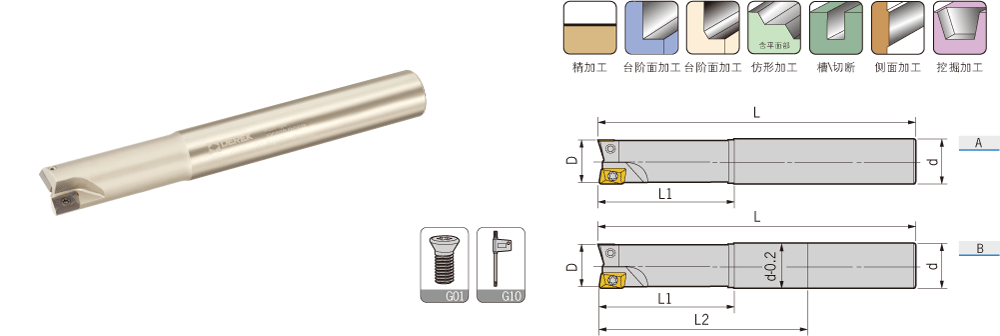

Figure |
D |
d |
L1 |
L2 |
L
|
Cross insert
|
Vertical insert |
Insert screw |
Wrench |
Weight |
| ASL- |
C20-20-160-2T |
2 |
A |
20 |
20 |
35 |
- |
160 |
ADMT100308L |
ACMT100308R |
M025W060 |
Q08B |
0.35 |
| C20-20-200-2T |
2 |
B |
20 |
20 |
35 |
100 |
200 |
ADMT100308L |
ACMT100308R |
M025W060 |
Q08B |
0.45 |
| C25-25-150-2T |
2 |
A |
25 |
25 |
40 |
- |
150 |
ADMT12T308L |
ACMT12T308R |
M030Y070-2 |
Q10R |
0.55 |
| C25-25-200-2T |
2 |
B |
25 |
25 |
40 |
100 |
200 |
ADMT12T308L |
ACMT12T308R |
M030Y070-2 |
Q10R |
0.75 |
| C25-25-250-2T |
2 |
B |
25 |
25 |
40 |
115 |
250 |
ADMT12T308L |
ACMT12T308R |
M030Y070-2 |
Q10R |
0.95 |
| C32-32-160-2T |
2 |
A |
32 |
32 |
50 |
- |
160 |
ADMT150408L |
ACMT150408R |
M040S080-1 |
Q15B |
0.90 |
| C32-32-200-2T |
2 |
B |
32 |
32 |
50 |
100 |
200 |
ADMT160408L |
ACMT160408R |
M040S080-1 |
Q15B |
1.25 |
| 适用 Suitable:日立刀片 HITACHI Insert |
|
|
