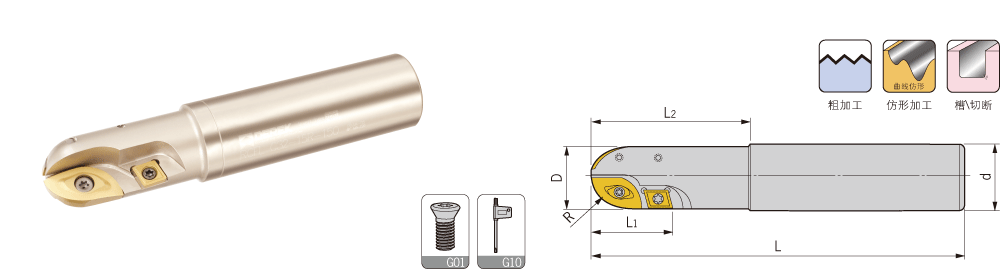

RCFL Ball-nose Indexable Cutter For Roughing
RCFL球形中粗刀 |
 |
| 型号 |
刃数 |
|
|
|
|
|
|
刀片型号 |
刀片螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |
R |
D |
d |
L1 |
L2
|
L |
Insert |
Insert screw |
Wrench |
Weight |
RCFL-
|
C20-10R-160-2T |
4 |
10 |
20 |
20 |
18 |
60 |
160 |
|
|
Q08B |
0.35 |
| C20-10R-200-2T |
4 |
10 |
20 |
20 |
18 |
70 |
200 |
|
|
Q08B |
0.45 |
| C25-10R-160-2T |
4 |
10 |
20 |
25 |
18 |
60 |
160 |
ZCEW100CE |
M030D075 |
Q08B |
0.50 |
| C25-10R-200-2T |
4 |
10 |
20 |
25 |
18 |
70 |
200 |
ZCEW100SE |
M030D095 |
Q08B |
0.65 |
| C25-10R-250-2T |
4 |
10 |
20 |
25 |
18 |
80 |
250 |
CPMT080204 |
M025D060 |
Q08B |
0.75 |
| C32-10R-250-2T |
4 |
10 |
20 |
32 |
18 |
115 |
250 |
|
|
Q08B |
1.15 |
| C32-10R-300-2T |
4 |
10 |
20 |
32 |
18 |
115 |
300 |
|
|
Q08B |
1.40 |
| C25-12.5R-160-2T |
4 |
12.5 |
25 |
25 |
23 |
60 |
160 |
|
|
Q15B |
0.50 |
| C25-12.5R-200-2T |
4 |
12.5 |
25 |
25 |
18 |
70 |
200 |
ZCEW125CE |
M040D080-3 |
Q15B |
0.70 |
| C32-12.5R-160-2T |
4 |
12.5 |
25 |
32 |
23 |
70 |
160 |
CPMT090308 |
M040D110-3 |
Q15B |
0.60 |
| C32-12.5R-200-2T |
4 |
12.5 |
25 |
32 |
23 |
80 |
200 |
ZCEW125SE |
|
Q15B |
0.90 |
| C32-12.5R-250-2T |
4 |
12.5 |
25 |
32 |
23 |
90 |
250 |
|
|
Q15B |
1.20 |
| C32-12.5R-300-2T |
4 |
12.5 |
25 |
32 |
23 |
105 |
300 |
|
|
Q20B |
1.45 |
| C32-15R-160-2T |
4 |
15 |
30 |
32 |
28 |
60 |
160 |
|
|
Q15B/Q20B |
0.85 |
| C32-15R-200-2T |
4 |
15 |
30 |
32 |
28 |
70 |
200 |
CPMT090308 |
M040D080-3 |
Q15B/Q20B |
1.10 |
| C32-15R-250-2T |
4 |
15 |
30 |
32 |
28 |
80 |
250 |
ZCEW150CE |
M050D120-3 |
Q15B/Q20B |
1.40 |
| C32-15R-300-2T |
4 |
15 |
30 |
32 |
28 |
100 |
300 |
ZCEW150SE |
|
Q15B/Q20B |
1.70 |
| C32-15R-350-2T |
4 |
15 |
30 |
32 |
28 |
100 |
350 |
|
|
Q15B/Q20B |
2.00 |
| 适用Suitable：日立刀片 HITACHI Insert |
|
|
