JRC Indexable End Mill
JRC舍弃式端铣刀 |
 |
| 型号 |
刃数 |
图示 |
|
|
|
|
|
|
刀片型号 |
刀片螺钉 |
压板 |
压板螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |

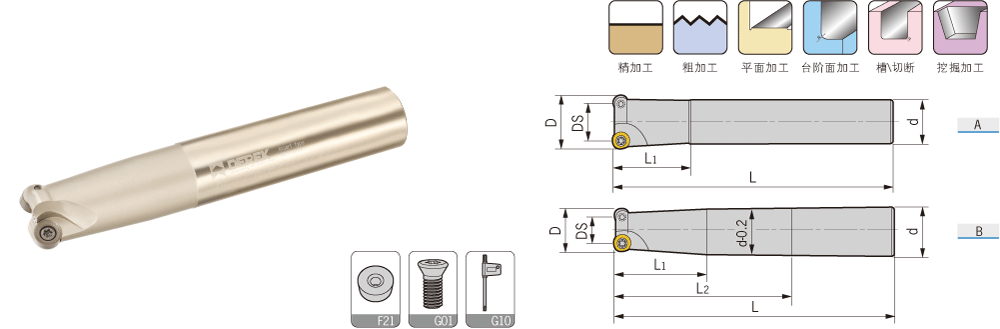

Figure |
D |
DS |
d |
L1 |
L2 |
L
|
Insert |
Insert screw |
Clamp |
screw |
Wrench |
Weight |
| JRC- |
C20-5R20-160-2T |
2 |
A |
20 |
10 |
20 |
40 |
- |
160 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.35 |
| C20-5R25-160-2T |
2 |
A |
25 |
15 |
20 |
40 |
- |
160 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.40 |
| C20-5R25-200-2T |
2 |
A |
25 |
15 |
20 |
40 |
- |
200 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.50 |
| C25-5R25-160-2T |
2 |
A |
25 |
15 |
25 |
60 |
- |
160 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.55 |
| C25-5R25-200-2T |
2 |
B |
25 |
15 |
25 |
70 |
100 |
200 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.75 |
| C25-5R25-250-2T |
2 |
B |
25 |
15 |
25 |
60 |
115 |
250 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.95 |
| C25-5R25-200-2T |
2 |
B |
25 |
15 |
25 |
70 |
100 |
200 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.75 |
| C25-5R25-250-2T |
2 |
B |
25 |
15 |
25 |
80 |
115 |
250 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.95 |
| C25-6R32-160-2T |
2 |
A |
32 |
20 |
25 |
50 |
- |
160 |
RC*T1204 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.60 |
| C25-6R32-200-2T |
2 |
A |
32 |
20 |
25 |
50 |
- |
200 |
RC*T1204 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.80 |
| C25-6R32-250-2T |
2 |
A |
32 |
20 |
25 |
50 |
- |
250 |
RC*T1204 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
1.00 |
| 适用Suitable:德克、山特维克刀片DEREK Or SANDVIK Insert |
| 型号 |
刃数 |
图示 |
|
|
|
|
|
刀片型号
|
刀片螺钉 |
压板 |
压板螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |
Figure |
D |
DS |
d |
L1 |
L
|
Insert |
Insert screw |
Clamp |
screw |
Wrench |
Weight |
| JRC- |
C24-5R25-160-2T |
2 |
A |
25 |
15 |
24 |
60 |
160 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.55 |
| C24-5R25-200-2T |
2 |
A |
25 |
15 |
24 |
70 |
200 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.70 |
| C24-5R25-250-2T |
2 |
A |
25 |
15 |
24 |
80 |
250 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.90 |
| C25-5R26-160-2T |
2 |
A |
26 |
16 |
25 |
60 |
160 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.55 |
| C25-5R26-200-2T |
2 |
A |
26 |
16 |
25 |
70 |
200 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
0.75 |
| C25-5R26-250-2T |
2 |
A |
26 |
16 |
25 |
80 |
250 |
RC*T10T3 |
M035T085 |
YD-14 |
M035T085 |
Q15B |
1.00 |
| 适用Suitable:德克、山特维克刀片DEREK Or SANDVIK Insert |
| |
| 特点/ Feature |
■适配山特维克精磨刀片，精度更高，精加工效果更佳。
|
■刀体整体预热后，再进精磨。避免二次热处理使刀体产生变形，从而确保了精确的公差范围和超强的钢性。
|
| ■Suitable for Sandvik insert, high efficiency on finish machining. |
| ■Tool body is machined after heat treatment, which promises a precise tolerance and hogh rigidity. |
|
|
