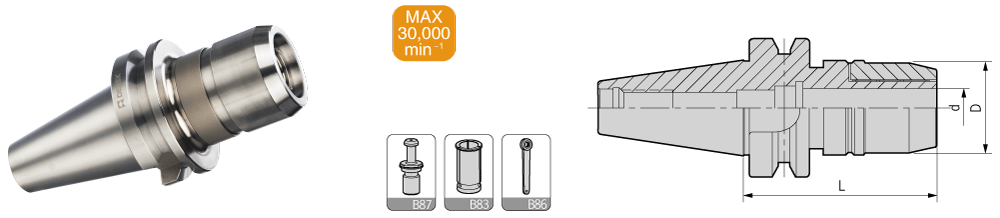

BT-HPM High-Speed Power Chuck
BT-HPM 高速强力刀柄 |
 |
| 型号 |
范围 |
|
|
|
适用筒夹 |
重量 |
|
Specifcation |
Range |
D |
d |
L |
Suit collet |
Weight |
|
BT30- |
HPM16-70 |
3-16 |
46 |
16 |
70 |
SC16 |
1.40 |
| HPM20-75 |
6-20 |
55 |
20 |
75 |
SC20 |
1.80 |
|
BT40- |
HPM16-70 |
3-16 |
46 |
16 |
70 |
SC16 |
1.60 |
| HPM16-105 |
3-16 |
46 |
16 |
105 |
SC16 |
1.80 |
| HPM16-135 |
3-16 |
46 |
16 |
135 |
SC16 |
2.30 |
| HPM20-80 |
6-20 |
55 |
20 |
80 |
SC20 |
2.40 |
| HPM20-105 |
6-20 |
55 |
20 |
105 |
SC20 |
2.50 |
| HPM20-135 |
6-20 |
55 |
20 |
135 |
SC20 |
2.80 |
| HPM32-105 |
6-32 |
68 |
32 |
105 |
SC32 |
2.80 |
| HPM32-135 |
6-32 |
68 |
32 |
135 |
SC32 |
3.00 |
|
BT50- |
HPM16-90 |
3-16 |
46 |
16 |
90 |
SC16 |
3.90 |
| HPM16-110 |
3-16 |
46 |
16 |
110 |
SC16 |
4.10 |
| HPM16-135 |
3-16 |
46 |
16 |
135 |
SC16 |
4.30 |
| HPM16-150 |
3-16 |
46 |
16 |
150 |
SC16 |
4.50 |
| HPM20-105 |
6-20 |
55 |
20 |
105 |
SC20 |
4.50 |
| HPM20-135 |
6-20 |
55 |
20 |
135 |
SC20 |
4.70 |
| HPM20-150 |
6-20 |
55 |
20 |
150 |
SC20 |
4.90 |
| HPM32-110 |
6-32 |
68 |
32 |
110 |
SC32 |
5.20 |
| HPM32-135 |
6-32 |
68 |
32 |
135 |
SC32 |
5.90 |
| HPM32-165 |
6-32 |
68 |
32 |
165 |
SC32 |
6.60 |
| 注：扳手和筒夹需单独订购。 |
| Notice:Wrenchs and collets shall be ordered separately. |
| |
| 特点/ Feature |
|
■动平衡设定： G2.5 ； 20,000 rpm。
|
■Balanced: G2.5; 20,000 rpm; |
| ■3D处径向跳动≤0.01 mm。 |
■Runout (X3D): ≤0.01 mm. |
|
|
|
|
