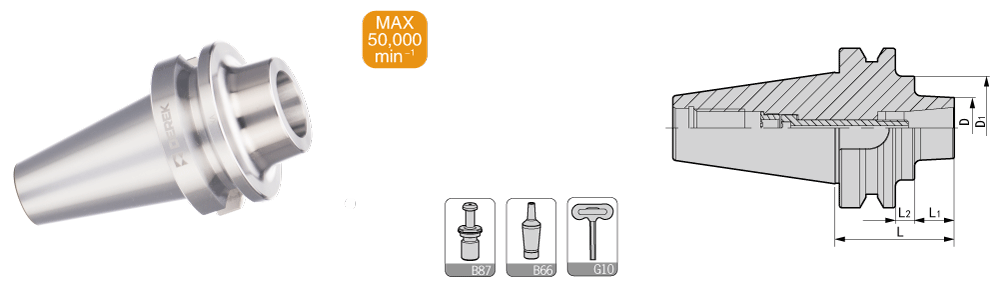

BT-DSF Shrink Fit Holder
BT-DSF 烧结式热装刀柄（分体式） |
 |
| 型号 |
|
|
|
|
|
拉紧螺钉 |
止动螺母 |
T型扳手 |
重量 |
|
Specifcation |
D |
D1 |
L1 |
L2 |
L |
Tension screw |
Stop nut |
Wrench |
Weight |
|
BT30- |
DSF12-60 |
38 |
- |
13 |
- |
60 |
E100Z300 |
ZD12-1 |
T06 |
0.40 |
|
BT40-
| DSF12-50 |
38 |
- |
18 |
- |
50 |
E100Z300 |
ZD12-1 |
T06 |
1.10 |
| DSF12-75 |
38 |
- |
48 |
- |
75 |
E100Z300 |
ZD12-1 |
T06-L |
1.40 |
| DSF12-135 |
41 |
- |
108 |
- |
135 |
E100Z300 |
ZD12-1 |
T06-L |
2.20 |
|
BT50-
| DSF12-75 |
38 |
65 |
25 |
12 |
75 |
E100Z400 |
ZD12-1 |
T06-L |
4.00 |
| DSF12-105 |
41 |
65 |
55 |
12 |
105 |
E100Z700 |
ZD12-1 |
T06-L |
4.40 |
| DSF12-135 |
41 |
65 |
85 |
12 |
135 |
E100Z1000 |
ZD12-1 |
T06-L |
4.70 |
| 注：报价时含扳手。 |
| Notice:Wrench is included. |
| |
| 特点/ Feature |
|
| ■动平衡设定: G2.5; 25,000 rpm。 |
■Balanced: G2.5; 25,000 rpm; |
| ■3D处径向跳动≤0.003 mm。 |
■Runout (X3D): ≤0.003 mm. |
|
|
