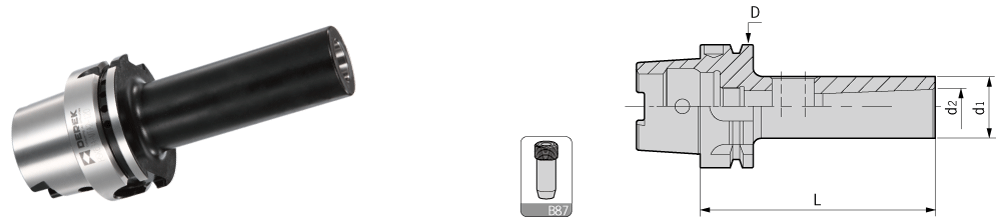

HSK-A-MTA Morse Taper Adapter
HSK-A-MTA 莫式锥套刀柄（钻头套筒） |
 |
| 型号 |
|
|
|
|
|
|
|
重量 |
|
Specifcation |
D |
d1 |
d2 |
L1 |
L2 |
L3 |
L |
Weight |
|
HSK50A-
HSK63A-
HSK100A- |
MTA1-100 |
50 |
25 |
12.065 |
100 |
74 |
56 |
125 |
1.50 |
| MTA2-120 |
50 |
32 |
17.780 |
120 |
94 |
67 |
145 |
1.80 |
| MTA3-140 |
50 |
40 |
23.825 |
140 |
114 |
84 |
165 |
1.90 |
| MTA1-100 |
63 |
25 |
12.065 |
100 |
74 |
56 |
132 |
1.90 |
| MTA2-120 |
63 |
32 |
17.780 |
120 |
94 |
67 |
152 |
2.00 |
| MTA3-140 |
63 |
40 |
23.825 |
140 |
114 |
84 |
172 |
2.20 |
| MTA4-160 |
63 |
48 |
31.267 |
160 |
134 |
107 |
192 |
2.50 |
| MTA1-110 |
100 |
25 |
12.065 |
110 |
81 |
56 |
160 |
3.40 |
| MTA2-120 |
100 |
32 |
17.780 |
120 |
91 |
67 |
170 |
3.80 |
| MTA3-150 |
100 |
40 |
23.825 |
150 |
121 |
84 |
200 |
4.00 |
| MTA4-170 |
100 |
48 |
31.267 |
170 |
141 |
107 |
220 |
4.60 |
| MTA5-200 |
100 |
63 |
44.299 |
200 |
171 |
135 |
250 |
5.20 | |
|
