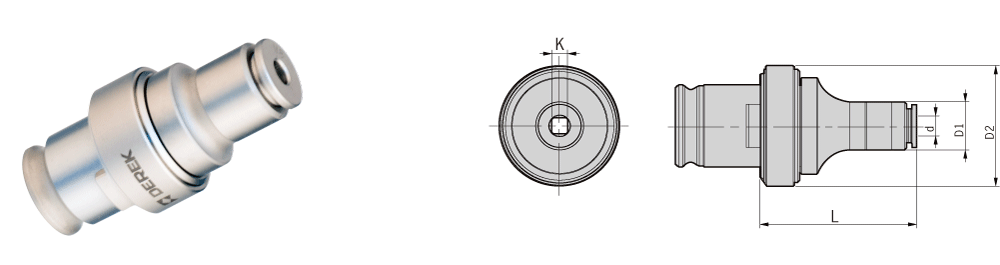

TPD830 Tapping Collet
TPD830 攻牙筒夹 |
 |
| 型号 |
|
|
|
|
|
备注通用 |
|
|
|
Specifcation |
d |
k |
D1 |
D2 |
ISO529(1) |
JIS |
DIN371 |
DIN376 |
| TPD830- |
060049-L |
6 |
4.9 |
20 |
50 |
- |
- |
- |
M8 |
| 061050-L |
6.1 |
5 |
20 |
50 |
- |
W5/16 |
- |
- |
| 062050-L |
6.2 |
5 |
20 |
50 |
- |
M8 |
- |
- |
| 063050-L |
6.3 |
5 |
20 |
50 |
M8 |
- |
- |
- |
| 070055-L |
7 |
5.5 |
20 |
50 |
- |
M10; W3/8 |
- |
M10 |
| 080063-L |
8 |
6.3 |
20 |
50 |
M10 |
- |
- |
- |
| 080060-L |
8 |
6 |
20 |
50 |
- |
W7/16; PT1/8 |
- |
- |
| 080062-L |
8 |
6.2 |
20 |
50 |
- |
- |
M8 |
- |
| 085065-L |
8.5 |
6.5 |
20 |
50 |
- |
M12 |
- |
- |
| 090070-L |
9 |
7 |
20 |
50 |
- |
W1/2 |
- |
M12 |
| 090071-L |
9 |
7.1 |
20 |
50 |
M12 |
- |
- |
- |
| 100080-L |
10 |
8 |
20 |
50 |
- |
- |
M10 |
- |
| 105080-L |
10.5 |
8 |
27 |
50 |
- |
M14 |
- |
- |
| 110090-L |
11 |
9 |
27 |
50 |
- |
PT1/4 |
- |
M14 |
| 112090-L |
11.2 |
9 |
27 |
50 |
M14 |
- |
- |
- |
| 120090-L |
12 |
9 |
27 |
50 |
- |
W5/8 |
|
M16 |
| 125100-L |
12.5 |
10 |
27 |
50 |
M16 |
M16 |
- |
- |
| 140110-L |
14 |
11 |
32 |
50 |
- |
M18; W3/4; PT3/8 |
- |
M18 |
| 140112-L |
14 |
11.2 |
32 |
50 |
M18; M20 |
- |
- |
- |
| 150120-L |
15 |
12 |
32 |
50 |
- |
M20 |
- |
- |
| 160120-L |
16 |
12 |
32 |
50 |
- |
- |
- |
M20 |
| 160125-L |
16 |
12.5 |
32 |
50 |
M22 |
|
- |
- |
| 170130-L |
17 |
13 |
32 |
50 |
- |
M22; W7/8 |
- |
- |
| 180140-L |
18 |
14 |
36 |
50 |
M24 |
PT1/2 |
- |
- |
| 180145-L |
18 |
14.5 |
36 |
50 |
- |
- |
- |
M22; M24 |
| 190150-L |
19 |
15 |
36 |
50 |
- |
M24 |
- |
- |
| 200150-L |
20 |
15 |
36 |
50 |
- |
M27; W1 PT5/8 |
- |
- |
| 200160-L |
20 |
16 |
36 |
50 |
M27; M30 |
- |
- |
M27 |
| 220180-L |
22 |
18 |
36 |
50 |
- |
- |
- |
M30 |
| 230170-L |
23 |
17 |
36 |
50 |
- |
M30; PT3/4 |
- |
- |
| |
TPE830丝锥筒夹长度长度攻丝夹头 Length of Tapping Collet |
|
| L |
L+60 |
L+100 |
| 65 |
125 |
165 |
| 注：ISO529（1）为细柄普通粗牙螺纹丝锥； |
| 注：ISO529（2）为粗柄普通粗牙螺纹丝锥。 |
| 注：其中“d”，“k”尺寸为标准丝锥柄部参考数据。 |
| TPD830丝锥筒夹分别有三款长度可选，带*规格非常备库存选。例：TPD830-060049-125 |
Note: Regular inventory is length of "L". Length with "*" should be specially made as request.
For example: TPD830-060049-125 | |
|
