TPD316 Tapping Collet
TPD316 攻牙筒夹 |
 |
| 型号 |
|
|
|
|
|
|
备注通用 |
|
|
|

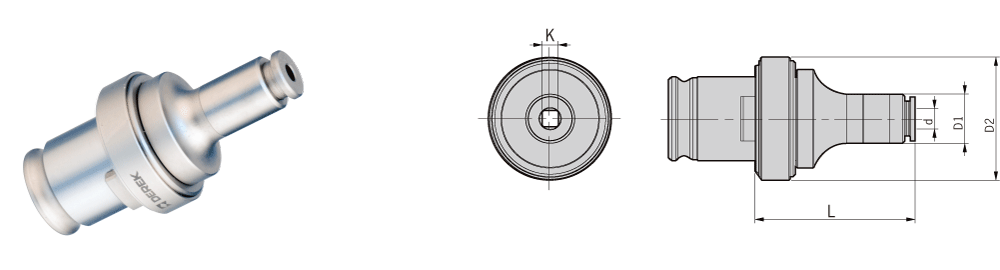

Specifcation |
d |
k |
D1 |
D2 |
ISO529(1) |
ISO529(2) |
JIS |
DIN371 |
DIN376 |
| TPD316- |
028021-L |
2.8 |
2.1 |
16 |
33 |
- |
- |
- |
- |
M4 |
| 0315025-L |
3.15 |
2.5 |
16 |
33 |
M4 |
M3 |
- |
- |
|
| 035027-L |
3.5 |
2.7 |
16 |
33 |
- |
- |
- |
M3 |
|
| 0400315-L |
4 |
3.15 |
16 |
33 |
M5 |
M4 |
- |
- |
- |
| 040032-L |
4 |
3.2 |
16 |
33 |
- |
- |
M3; W1/8 |
- |
- |
| 0450355-L |
4.5 |
3.4 |
16 |
33 |
- |
- |
- |
M4 |
M6 |
| 045034-L |
4.5 |
3.55 |
16 |
33 |
M6 |
- |
- |
- |
- |
| 050040-L |
5 |
4 |
16 |
33 |
- |
M5 |
M4 |
- |
- |
| 055045-L |
5.5 |
4.5 |
16 |
33 |
- |
- |
M5; W3/16 |
- |
- |
| 060045-L |
6 |
4.5 |
16 |
33 |
- |
- |
M6; W1/4 |
- |
- |
| 060049-L |
6 |
4.9 |
16 |
33 |
- |
- |
- |
M5 M6 |
M8 |
| 061050-L |
6.1 |
5 |
16 |
33 |
- |
- |
W5/16; W5/16 |
- |
- |
| 062050-L |
6.2 |
5 |
16 |
33 |
- |
- |
M8 |
- |
- |
| 063050-L |
6.3 |
5 |
16 |
33 |
M8 |
M6 |
- |
- |
- |
| 070055-L |
7 |
5.5 |
20 |
33 |
- |
- |
M10; W3/8 |
- |
M10 |
| 080063-L |
8 |
6 |
20 |
33 |
- |
- |
W7/16; PT1/8 |
- |
- |
| 080060-L |
8 |
6.2 |
20 |
33 |
- |
- |
- |
M8 |
- |
| 080062-L |
8 |
6.3 |
20 |
33 |
M10 |
M8 |
- |
- |
- |
| 085065-L |
8.5 |
6.5 |
20 |
33 |
- |
- |
M12 |
- |
- |
| 090071-L |
9 |
7 |
20 |
33 |
- |
- |
- |
- |
M12 |
| 090070-L |
9 |
7.1 |
20 |
33 |
M12 |
- |
W1/2 |
- |
- |
| 100080-L |
10 |
8 |
27 |
33 |
- |
M10 |
- |
M10 |
- |
| 105080-L |
10.5 |
8 |
27 |
33 |
- |
- |
M14 |
- |
M14 |
| 110090-L |
11 |
9 |
27 |
33 |
- |
- |
PT1/4 |
- |
- |
| 112090-L |
11.2 |
9 |
27 |
33 |
M14 |
- |
- |
- |
- |
| 120090-L |
12 |
9 |
27 |
33 |
- |
- |
W5/8 |
- |
M16 |
| 125100-L |
12.5 |
10 |
27 |
33 |
M16 |
- |
M16 |
- |
- |
| |
TPE316丝锥筒夹长度长度攻丝夹头 Length of Tapping Collet |
|
| L |
L+60 |
L+100 |
| 45 |
105 |
145 |
| 注：ISO529（1）为细柄普通粗牙螺纹丝锥； |
| 注：ISO529（2）为粗柄普通粗牙螺纹丝锥。 |
| 注：其中“d”，“k”尺寸为标准丝锥柄部参考数据。 |
| TPD316丝锥筒夹分别有三款长度可选,带*规格非常备库存。例：TPD316-028021-105 |
Note: Regular inventory is length of "L". Length with "*" should be specially made as request.
For example: TPD316-028021-105 |
|
|
