SK-SLN Side Lock Holder
SK-SLN侧固式刀柄 |
 |
| 型号 |

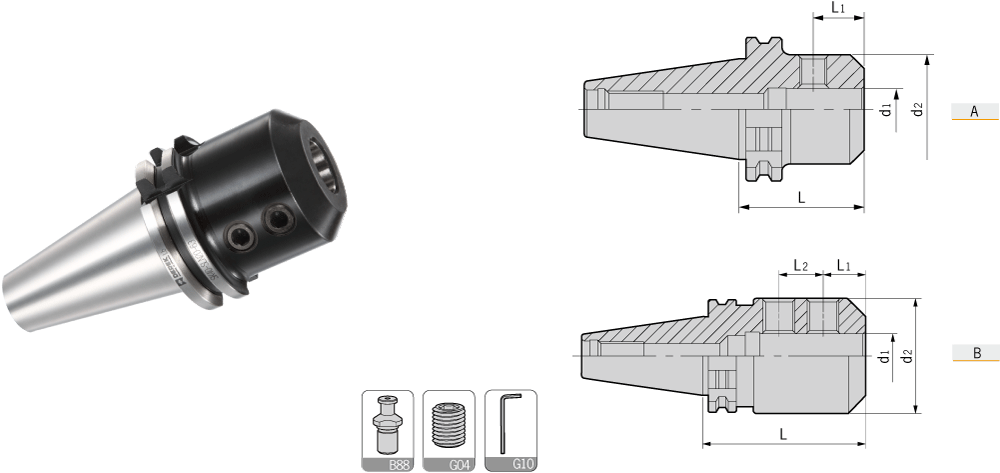

图示 |
|
|
|
|
|
侧面压紧螺钉 |
适用筒夹 |
|
Specifcation |
Figure |
d1 |
d2 |
L |
L1 |
L2 |
Side-lock screw |
Suit collet |
|
SK30-
SK40-
SK50- |
SLN6-50 |
A |
6 |
25 |
50 |
18 |
- |
M060U080 |
0.41 |
| SLN8-50 |
A |
8 |
28 |
50 |
18 |
- |
M080U100 |
0.46 |
| SLN10-50 |
A |
10 |
35 |
50 |
20 |
- |
M100U120 |
0.54 |
| SLN12-50 |
A |
12 |
42 |
50 |
22.5 |
- |
M120U140 |
0.61 |
| SLN16-63 |
A |
16 |
48 |
63 |
24 |
- |
M140U160 |
0.85 |
| SLN6-50 |
A |
6 |
25 |
50 |
18 |
- |
M060U080 |
1.00 |
| SLN8-50 |
A |
8 |
28 |
50 |
18 |
- |
M080U100 |
1.01 |
| SLN10-50 |
A |
10 |
35 |
50 |
20 |
- |
M100U100 |
1.15 |
| SLN12-50 |
A |
12 |
42 |
50 |
22.5 |
- |
M120U140 |
1.26 |
| SLN16-63 |
A |
16 |
48 |
63 |
24 |
- |
M140U160 |
1.31 |
| SLN20-63 |
A |
20 |
52 |
100 |
25 |
- |
M160U160 |
1.33 |
| SLN25-100 |
B |
25 |
65 |
100 |
24 |
25 |
M180Z180P |
2.32 |
| SLN32-105 |
B |
32 |
72 |
63 |
24 |
28 |
M200Z180P |
2.37 |
| SLN6-63 |
A |
6 |
25 |
63 |
18 |
- |
M060U080 |
3.12 |
| SLN8-63 |
A |
8 |
28 |
63 |
18 |
- |
M080U100 |
3.15 |
| SLN10-63 |
A |
10 |
34 |
63 |
20 |
- |
M100U100 |
3.63 |
| SLN12-63 |
A |
12 |
42 |
63 |
22.5 |
- |
M120U140 |
3.86 |
| SLN16-63 |
A |
16 |
48 |
63 |
24 |
- |
M140U160 |
3.90 |
| SLN20-63 |
A |
20 |
52 |
63 |
25 |
- |
M160U160 |
3.93 |
| SLN25-80 |
B |
25 |
65 |
80 |
24 |
25 |
M180Z200P |
4.62 |
| SLN32-100 |
B |
32 |
72 |
100 |
24 |
25 |
M200Z180P |
4.80 |
| SLN40-110 |
B |
40 |
90 |
110 |
30 |
32 |
M200Z250P |
5.21 |
| SLN42-110 |
B |
42 |
90 |
110 |
30 |
32 |
M200Z250P |
6.00 |
| 注：扳手需单独订购。 |
| Notice: Wrenchs shall be ordered separately. |
|
|
