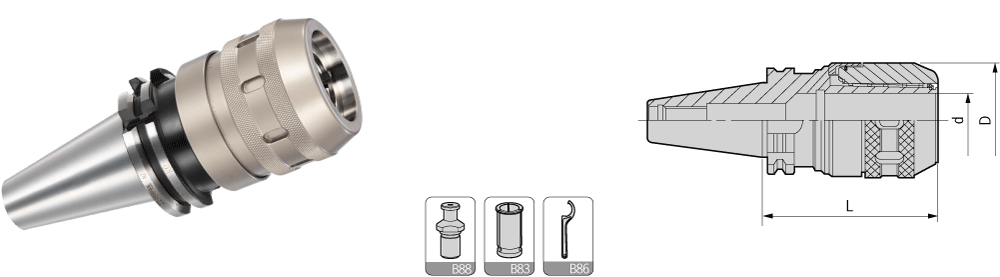

SK-MLC Power Chuck
SK-MLC 强力刀柄 |
 |
| 型号 |
范围 |
|
|
|
|
适用筒夹 |
重量 |
|
Specifcation |
Range |
D |
d |
L |
|
Suit collet |
Weight |
|
SK30-
SK40-
SK50- |
MLC20-85 |
6-20 |
53 |
20 |
85 |
|
SC20 |
1.90 |
| MLC20-100 |
6-20 |
72 |
20 |
100 |
|
SC20 |
2.10 |
| MLC32-135 |
6-32 |
72 |
32 |
135 |
|
SC32 |
3.00 |
| MLC20-85 |
6-20 |
53 |
20 |
85 |
|
SC20 |
2.40 |
| MLC20-100 |
6-20 |
53 |
20 |
100 |
|
SC20 |
2.50 |
| MLC20-135 |
6-20 |
53 |
20 |
135 |
|
SC20 |
2.80 |
| MLC32-105 |
6-32 |
72 |
32 |
105 |
|
SC32 |
2.80 |
| MLC32-135 |
6-32 |
72 |
32 |
135 |
|
SC32 |
3.10 |
| MLC20-105 |
6-20 |
53 |
20 |
105 |
|
SC20 |
4.50 |
| MLC20-150 |
6-20 |
53 |
20 |
150 |
|
SC20 |
4.90 |
| MLC32-85 |
6-32 |
72 |
32 |
85 |
|
SC32 |
4.50 |
| MLC32-110 |
6-32 |
72 |
32 |
110 |
|
SC32 |
5.20 |
| MLC32-135 |
6-32 |
72 |
32 |
135 |
|
SC32 |
5.90 |
| MLC42-110 |
6-42 |
87.5 |
42 |
110 |
|
SC42 |
6.00 |
| MLC42-165 |
6-42 |
87.5 |
42 |
165 |
|
SC42 |
7.40 |
| 注：报价时含扳手，筒夹需单独订购。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| 特点/ Feature |
| ■刀柄采用四组220根针状滚针经特殊排列而成。 |
| ■端面锁紧增强了本体钢性强度。 |
| ■立铣刀无振动无滑移实现了最大能力范围的重铣削加工，跳动精度≤0.02mm。 |
| ■The tool holder uses four special layers with 220 pieces bearing arranged in particular. |
| ■lt can reduce the locking resistanced and also show best performance on heavy cutting. |
| ■The usual length of power milling chuck show that the highest runout accuracy can reach to ≤0.02mm. |
|
|
