SK-DC Precision Slim Collet Chuck
SK-DC小径精密夹头本体 |
 |
| 型号 |
图示 |
|
|
|
适用筒夹 |
拉紧螺钉 |
止动螺母 |
扳手 |
重量 |
|
Specifcation |

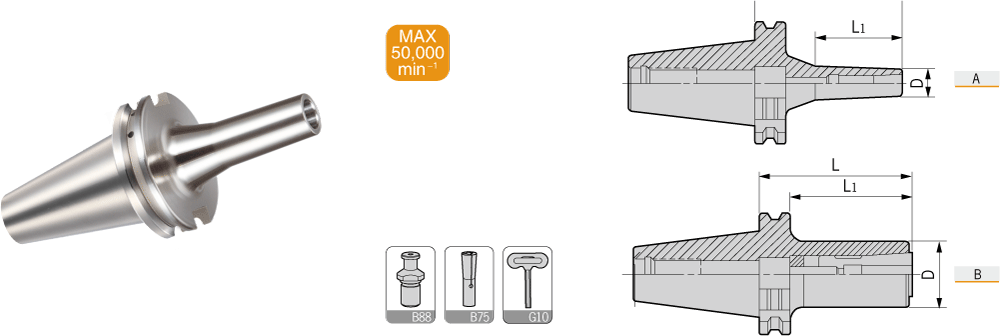

Figure |
D |
L1 |
L |
Suit collet |
Tension screw |
Stop nut |
Wrench |
Weight |
|
SK40-
SK50- |
DC6-90 |
A |
13 |
45 |
90 |
DC6 |
E050U450 |
ZD6-2 |
T04-L |
1.05 |
| DC8-90 |
A |
22 |
53 |
90 |
DC8 |
E060U600 |
ZD8-1 |
T05-L |
1.10 |
| DC10-90 |
B |
28 |
74 |
90 |
DC10 |
E080U300 |
ZD10-2 |
T06-L |
1.20 |
| DC12-90 |
B |
34 |
74 |
90 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.28 |
| DC10-110 |
A |
28 |
57 |
110 |
DC10 |
E080U800 |
ZD12-1 |
T06-L |
4.20 |
| DC12-110 |
B |
34 |
94 |
110 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
4.70 |
| 注：报价时含扳手，筒夹需单独订购。 |
| Notice:Wrench is included,while collet is to be ordered separately. |
| |
| 特点/ Feature |
|
■动平衡设定:G2.5;30,000rpm。
|
■Balanced:G2.5;30,000rpm; |
■3D处径向跳动≤0.003 mm。
|
■Runout (X3D):≤0.003 mm. | |
|
