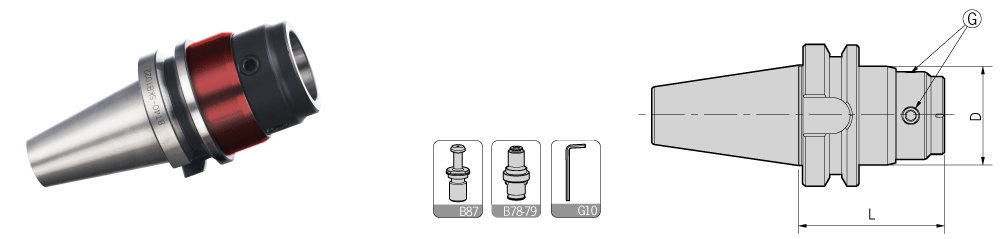

BT-TPG Split Rigid Tapping Chuck
BT-TPG 分体式刚性攻牙刀柄 |
 |
| |
型号 |
|
|
|
适用筒夾 |
L型扳手 |
攻牙能力 |
重量 |
| |
Specifcation |
D |
L |
G |
Suit collet |
Wrench |
Tapping capacity |
Weight |
|
|
BT30- |
TPG312 |
44 |
65 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
0.73 |
| |
TPG1024 |
56 |
85 |
M100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
0.89 |
|
BT40- |
TPG312 |
44 |
65 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
1.23 |
| |
TPG1024 |
56 |
75 |
M100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
1.39 |
|
BT50- |
TPG312 |
44 |
80 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
3.88 |
|
TPG1024 |
56 |
90 |
100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
4.09 |
| 注：筒夹需单独订购。 |
| Notice: Collets shall be ordered separately. |
| |
| 特点/ Feature |
|
| ■采用法兰接触设计，以求更优秀的刚性和同心度。 |
■Flange design, supply for better synchrony & rigidness. |
| ■支持丝锥快速更换。 |
■Quick assembling for taps. |
| ■中心内冷设计。 |
■With internal coolant system. |
| ■筒夹长度6种选择（33-200mm）。 |
■6 sizes available for tapping collet (33-200mm）. |
|
|
