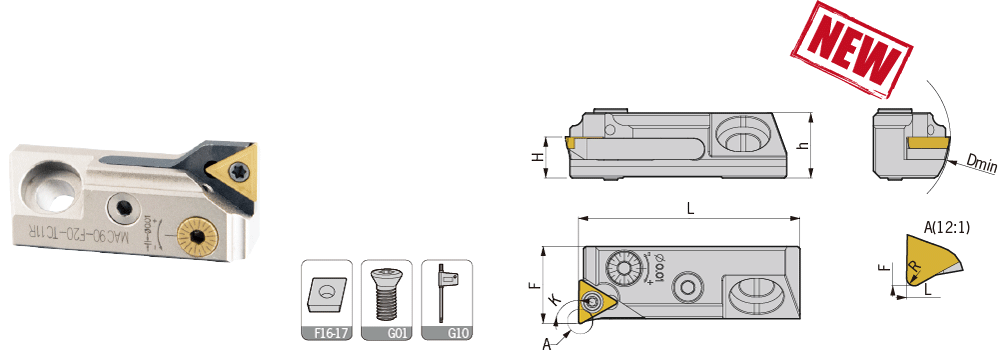

MAC Boring Cartridge
MAC 微调精镗刀座 |
 |
|
|
型 号 |
|
|
|
|
|
|
|
使用刀片 |
|
|
Specifcation |
K |
H |
F |
L |
h1 |
Dmin |
R |
Suitable inserts |
|
MAC90- |
F16-CC06-L/R |
90 |
8.5 |
16 |
46 |
13.5 |
28 |
0.4 |
CC..0602.. |
|
MAC95- |
F16-CC06-L/R |
95 |
8.5 |
16 |
46 |
13.5 |
28 |
0.4 |
CC..0602.. |
|
MAC90- |
F16-TP09-L/R |
90 |
8.5 |
16 |
46 |
13.5 |
28 |
0.4 |
TP..0902.. |
|
MAC95- |
F16-TP09-L/R |
95 |
8.5 |
16 |
46 |
13.5 |
28 |
0.4 |
TP..0902.. |
|
MAC90- |
F20-TC11-L/R |
90 |
8.5 |
20 |
46 |
13.5 |
36 |
0.4 |
TC..1102.. |
|
MAC95- |
F20-TC11-L/R |
95 |
8.5 |
20 |
46 |
13.5 |
36 |
0.4 |
TC..1102.. |
|
MAC90- |
F20-TP11-L/R |
90 |
9 |
20 |
46 |
13.5 |
36 |
0.4 |
TP..1103.. |
|
MAC95- |
F20-TP11-L/R |
95 |
9 |
20 |
46 |
13.5 |
36 |
0.4 |
TP..1103.. | |
| 适用Suitable:德克刀片、三菱刀片DEREK Or MITSUBISHI Insert |
| |
| 注/Notice |
|
| ■ 常备库存为右手型号。 |
■ With right hand type in stock. |
| ■ 刀片请根据不同材料单独订购。 |
■ Inserts need to be purchased based on different machined material. |
| ■ 微调精度直径0.01mm/div 半径0.005mm/div。 |
■ One dial = 0.01mm. |
| ■径向最大调整量直径0.6mm，轴向调整量1mm。 |
■Max radial adjustment is 0.6mm, max axial adjustment is 1mm. |
| 刀片型号 |
刀片锁紧螺钉 |
轴向调节螺钉 |
刀座锁紧螺钉 |
刀片锁紧扳手 |
刀座锁紧扳手 |
径向调节扳手 |
轴向调节扳手 |
|
Insert |
Insert Screw |
Axial Screw |
Cartridge Screw |
Insert Wrench |
Cartridge Wrench |
Radial Wrench |
Axial Wrench |
|
|
CC..0602.. |
M025W050 |
M050D200-90 |
E050U160 |
Q08 |
L04 |
L025 |
L03 |
|
TP..0902.. |
M025W050 |
M050D200-90 |
E050U160 |
Q08 |
L04 |
L025 |
L03 |
|
TC..1102.. |
M025W050 |
M050D200-90 |
E050U160 |
Q08 |
L04 |
L025 |
L03 |
|
TP..1103.. |
M030W050 |
M050D200-90 |
E050U160 |
Q08 |
L04 |
L025 |
L03 | |
|
