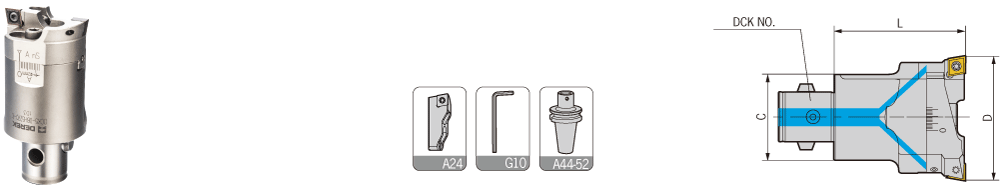

DBH Rough Boring Tool
DBH分体式粗镗头 |
 |
| 型号 |
|
|
镗孔范围D |
组合刀柄 |
|
刀片座 |
|
重量 |
|
Specifcation |
d |
L |
Boring range |
Adapter size |
Insert holder |
Weight |
|
|
DCK1-DBH20-26-C |
19 |
32.5 |
20-26 |
DCK1 |
DACC026-C |
|
DBCC2026-C |
0.06 |
| DCK2-DBH25-33-C |
24 |
35.5 |
25-33 |
DCK2 |
DACC2533-C |
|
DBCC2533-C |
0.12 |
| DCK3-DBH32-42-T |
31 |
40 |
32-42 |
DCK3 |
DACC3242-T |
|
DBCC3242-T |
0.27 |
| DCK3-DBH32-42-C |
31 |
40 |
32-42 |
DCK3 |
DACC3242-C |
|
DBCC3242-C |
0.25 |
| DCK4-DBH40-55-T |
39 |
47 |
40-55 |
DCK4 |
DACC4055-T |
|
DBCC4055-T |
0.49 |
| DCK4-DBH40-55-C |
39 |
47 |
40-55 |
DCK4 |
DACC4055-C |
|
DBCC4055-C |
0.45 |
| DCK5-DBH52-70-T |
50 |
57 |
52-70 |
DCK5 |
DACC5270-T |
|
DBCC5270-T |
0.88 |
| DCK5-DBH52-70-C |
50 |
57 |
52-70 |
DCK5 |
DACC5270-C |
|
DBCC5270-C |
0.88 |
| DCK6-DBH68-92-T |
64 |
71 |
68-92 |
DCK6 |
DACC6892-T |
|
DBCC6892-T |
1.60 |
| DCK6-DBH68-92-C |
64 |
71 |
68-92 |
DCK6 |
DACC6892-C |
|
DBCC6892-C |
1.58 |
| DCK6-DBH90-122-T |
64 |
71 |
90-122 |
DCK6 |
DACC90122-T |
|
DBCC90122-T |
2.43 |
| DCK6-DBH90-122-C |
64 |
71 |
90-122 |
DCK6 |
DACC90122-C |
|
DBCC90122-C |
2.28 |
| DCK7-DBH120-164-T |
90 |
71 |
120-164 |
DCK7 |
DACC120164-T |
|
DBCC120164-T |
4.70 |
| DCK7-DBH120-164-C |
90 |
71 |
120-164 |
DCK7 |
DACC120164-C |
|
DBCC120164-C |
4.70 |
| DCK7-DBH160-204-T |
90 |
71 |
160-204 |
DCK7 |
DACC160204-T |
|
DBCC160204-T |
5.80 |
| DCK7-DBH160-204-C |
90 |
71 |
160-204 |
DCK7 |
DACC160204-C |
|
DBCC160204-C |
5.80 |
|
注：使用错齿式加工详见A77页“加工方法”
Notice: For stepped cutting, please refer to Page A77。 | |
|
