DBJ20 Micro-Boring Bar
DBJ20 微调精密镗头刀杆 |
 |
| 型号 |
图示 |
|
|
|
|
镗孔范围 |
刀片型号 |
刀片螺钉 |
旗形扳手 |
重量 |
| Specifcation |

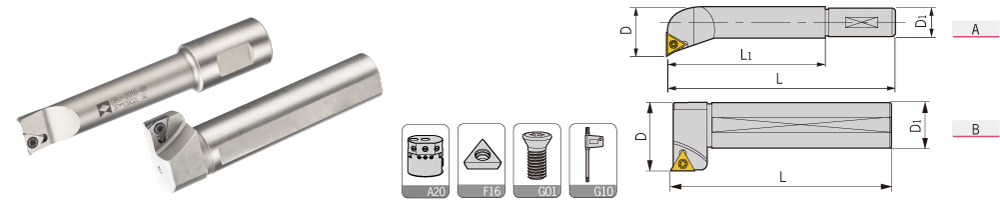

Figure |
D |
D1 |
L1 |
L |
Boring range |
Insert |
Insert screw |
Wrench |
Weight |
|
DBJ |
2008-32 |
A |
8 |
20 |
32 |
74 |
8-11 |
TBGH0601L |
M020W040 |
Q06 |
0.09 |
| 2010-40 |
A |
10 |
20 |
40 |
75 |
10-13 |
TBGH0601L |
M020W040 |
Q06 |
0.10 |
| 2012-53 |
A |
12 |
20 |
53 |
88 |
12-17 |
TPGH0902L |
M025W060 |
Q08 |
0.12 |
| 2016-68 |
A |
16 |
20 |
68 |
103 |
16-21 |
TPGH0902L |
M025W060 |
Q08 |
0.16 |
| 2020-83 |
A |
20 |
20 |
83 |
115 |
20-26 |
TPGH1103L |
M030W070 |
Q08 |
0.22 |
| 2025-96 |
A |
25 |
20 |
96 |
131 |
25-135 |
TPGH1103L |
M030W070 |
Q08 |
0.35 |
| 2030-115 |
A |
30 |
20 |
115 |
159 |
30-140 |
TPGH1103L |
M030W070 |
Q08 |
0.52 |
| 20120-97 |
B |
30 |
20 |
- |
97 |
120-280 |
TPGH1103L |
M030W070 |
Q08 |
0.25 |
适用Suitable:德克、京瓷或住友刀片DEREK、KYOCERA Or SUMITOMO Insert
|
| | |
|
