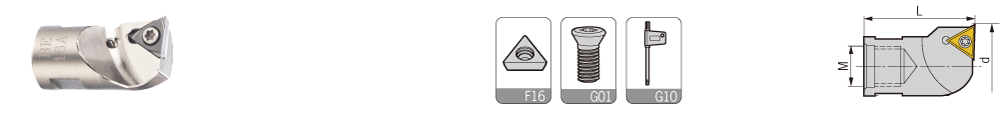

| 型号 |
|
|
|
镗孔范围 |
刀片型号 |
刀片螺钉 |
旗形扳手 |
重量 |
|
Specifcation |
D |
L
|
M |
Boring range |
Insert |
Insert screw |
Wrench |
Weight |
|
DEB |
09 |
09 |
18 |
M5 |
9-10.5 |
TPGH080202 |
M022W050 |
Q06 |
0.03 |
| 10.5 |
10.5 |
18 |
M5 |
10.5-12 |
TPGH080202 |
M022W050 |
Q06 |
0.03 |
| 12 |
12 |
23 |
M6 |
12-14 |
TPGH080202 |
M022W050 |
Q06 |
0.03 |
| 14 |
14 |
23 |
M6 |
14-16 |
TPGH080202 |
M022W050 |
Q06 |
0.03 |
| 16 |
16 |
23 |
M6 |
16-18 |
TPGH080202 |
M022W050 |
Q06 |
0.04 |
| 18 |
18 |
27 |
M10 |
18-20 |
TPGH080202 |
M022W050 |
Q06 |
0.04 |
| 20 |
20 |
27 |
M10 |
20-22 |
TPGH080202 |
M022W050 |
Q06 |
0.05 |
| 22 |
22 |
27 |
M10 |
22-24 |
TPGH080202 |
M022W050 |
Q06 |
0.05 |
| 24 |
24 |
27 |
M10 |
24-26 |
TPGH080202 |
M022W050 |
Q06 |
0.05 |
| 26 |
26 |
27 |
M10 |
26-28 |
TPGH080202 |
M022W050 |
Q06 |
0.05 |
| 28 |
28 |
27 |
M10 |
28-30 |
TPGH080202 |
M022W050 |
Q06 |
0.06 |
| 30 |
30 |
27 |
M10 |
30-32 |
TPGH080202 |
M022W050 |
Q06 |
0.06 |
| 32 |
32 |
27 |
M10 |
32-34 |
TPGH080202 |
M022W050 |
Q06 |
0.07 |
| 34 |
34 |
27 |
M10 |
34-36 |
TPGH080202 |
M022W050 |
Q06 |
0.09 |
| 36 |
36 |
27 |
M10 |
36-38 |
TPGH080202 |
M022W050 |
Q06 |
0.11 |
| 38 |
38 |
27 |
M10 |
38-40 |
TPGH080202 |
M022W050 |
Q06 |
0.15 |
| 40 |
40 |
27 |
M10 |
40-42 |
TPGH080202 |
M022W050 |
Q06 |
0.16 |
| 42 |
42 |
27 |
M10 |
42-44 |
TPGH080202 |
M022W050 |
Q06 |
0.19 |
| 44 |
44 |
27 |
M10 |
44-46 |
TPGH080202 |
M022W050 |
Q06 |
0.22 |
| 46 |
46 |
27 |
M10 |
46-48 |
TPGH080202 |
M022W050 |
Q06 |
0.26 |
| 48 |
48 |
27 |
M10 |
48-50 |
TPGH080202 |
M022W050 |
Q06 |
0.30 |
| 50 |
50 |
27 |
M10 |
50-52 |
TPGH080202 |
M022W050 |
Q06 |
0.34 |
适用Suitable:德克、京瓷或住友刀片DEREK、KYOCERA Or SUMITOMO Insert
|
| | |
|
